CPU

- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

Chipset

- AMD B850

Memory

- Dual Channel DDR5 Memory Technology

- 4 x DDR5 DIMM Slots

- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)

- Max. capacity of system memory: 256GB

- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA graphics (Actual support may vary by CPU)

- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

- Impedance Sensing on Rear Out port

- Individual PCB Layers for R/L Audio Channel

- Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Dragon RTL8125BG

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

Wireless LAN

- 802.11be 2x2 Wi-Fi 7 Module

- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be

- Supports 2.4GHz/5GHz/6GHz* frequency band

- Supports 160MHz channel bandwidth with 6GHz* frequency band

- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology

- Supports Bluetooth 5.4

- Supports MU-MIMO

Slots

CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*

Chipset:

- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- 15[?] Gold Contact in VGA PCIe Slot (PCIE1)

Storage

CPU:

- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors

RAID

- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

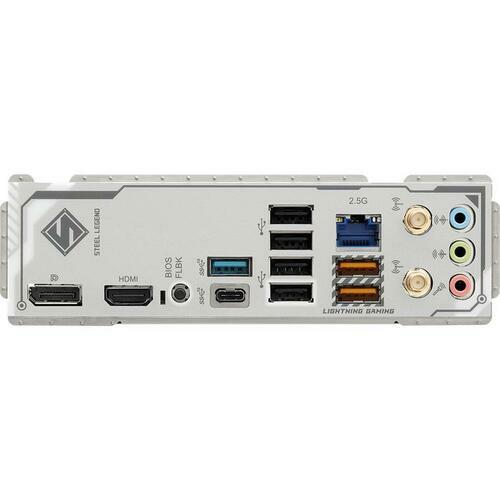

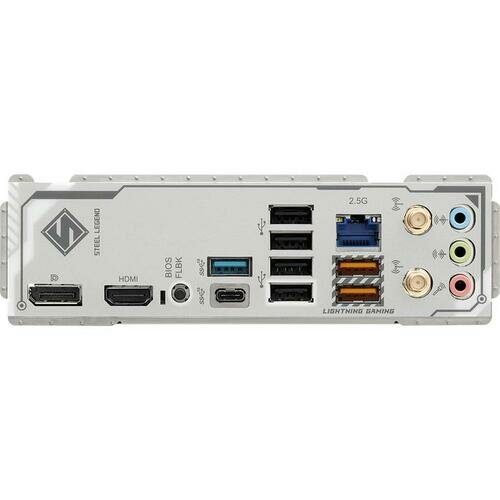

USB

CPU:

- 1 x USB 3.2 Gen2 Type-C (Rear)

- 1 x USB 3.2 Gen2 Type-A (Rear)

- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2))

Chipset:

- 1 x USB 3.2 Gen1 Type-C (Front)

- 5 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 4 Front)

- 8 x USB 2.0 (4 Rear, 4 Front)

Connector

- 1 x SPI TPM Header

- 1 x Thermistor Cable Header

- 1 x Power LED and Speaker Header

- 1 x RGB LED Header*

- 3 x Addressable LED Headers**

- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***

- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Cont
