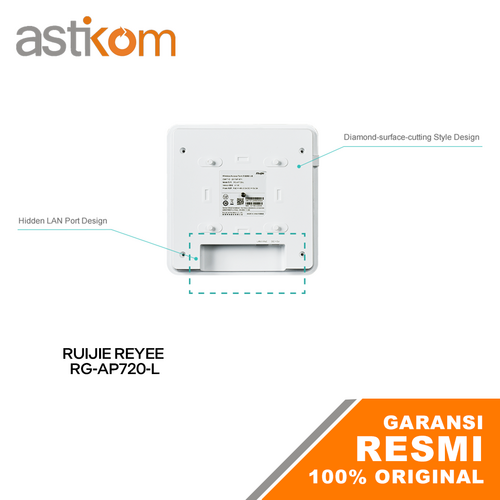

Model : Ruijie AP720-L
Target Deployment : Retail Chain Store, Small & Medium-sized Business Office, Boutique Hotel
Type : Indoor Ceiling/Wall-mounting
Radio : Concurrent Dual-band
Protocol : 802.11a/b/g/n/ac Wave2
Operating Bands :
[?] 802.11b/g/n: 2.4GHz to 2.483GHz
[?] 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)

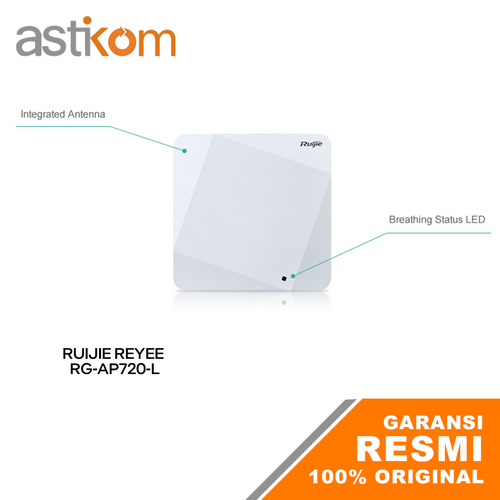

Antenna : Built-in Omni-directional Antenna
Antenna Gain :
[?] 2.4G: 3dBi
[?] 5G: 3dBi
Max Throughput :
[?] Maximum throughput of 2.4G: 300Mbps
[?] Maximum throughput of 5G: 867Mbps
[?] Maximum throughput per AP: 1167Mbps
Modulation :
[?] OFDM?BPSK@6/9Mbps?QPSK@12/18Mbps?16-QAM@24Mbps?64-QAM@48/54Mbps
[?] DSSS?DBPSK@1Mbps?DQPSK@2Mbps?and CCK@5.5/11Mbps
[?] MIMO-OFDM?BPSK, QPSK, 16QAM, 64QAM, 256QAM
Receiver Sensitivity :
[?] 11b?-96dBm?1Mbps??-93dBm?5Mbps??-89dBm?11Mbps?
[?] 11a/g?-91dBm?6Mbps??-85dBm?24Mbps??-80dBm?36Mbps??-74dBm?54Mbps?
[?] 11n?-90dBm?MCS0??-70dBm?MCS7??-89dBm?MCS8??-68dBm?MCS15?
[?] 11ac HT20?-88dBm?MCS0?, -63dBm?MCS9?
[?] 11ac HT40?-85dBm?MCS0?, -60dBm?MCS9?
[?] 11ac HT80?-82dBm?MCS0?, -57dBm?MCS9
Spatial Streams : 2x2
Maximum Transmit Power : 100mW
IP Rating : IP41
Ports : 1 10/100/1000BASE-T Ethernet uplink Port LAN1 supports PoE 1 Console Port
Power Supply : (DC Power adapters should be purchased from third-party vendors separately if needed.)
[?] local power supply (DC 5V/3A) PoE (802.3af)
Power Consumption : <12.95W
