ANSI/TIA Category    5
Cable Type    Flat oval, unshielded
Conductor Type    Solid | Stranded

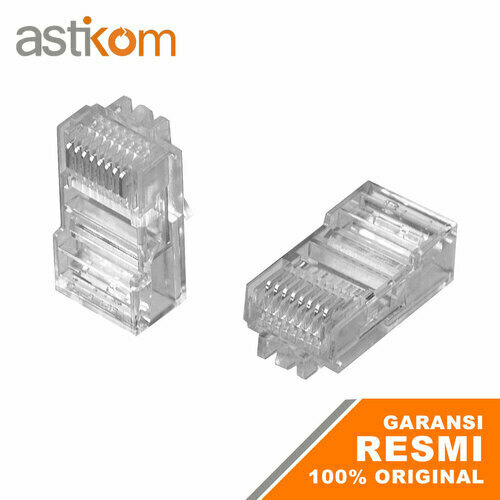

Interface    RJ45
Positions/Loaded Contacts    8/8
Termination Type    IDC

Compatible Cable Diameter, maximum    8.89 mm | 0.35 in
Compatible Cable Diameter, minimum    2.54 mm | 0.1 in
Compatible Insulated Conductor Diameter, maximum    0.99 mm | 0.039 in
Compatible Insulated Conductor Diameter, minimum    0.86 mm | 0.034 in
Contact Plating Thickness    1.27 µm
Compatible Conductor Gauge, solid    26[?]24 AWG
Compatible Conductor Gauge, stranded    26[?]24 AWG

Contact Base Material    Phosphor Bronze
Contact Plating Material    Gold
Material Type    Glass filled polycarbonate
